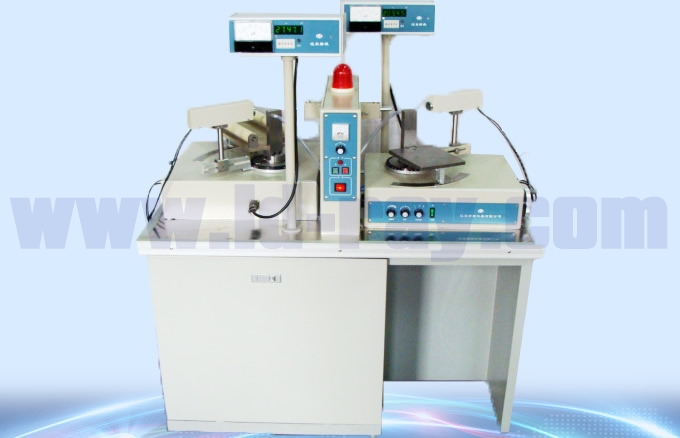

YX-2H8 Model Big Crystal Bar Orientation Instrument

YX-2H8 Model Big Crystal Bar Orientation Instrument is designed for multiple crystal l(single crystal silicon, sapphire, gallium etc) based on standard orientation instrument, mainly used for measurement of crystal round plate, crystal bar, its displayer put outside, adds bearing rail on sample table.

Standard configuration: GA, GC angular instrument

  1. One surface of GA angular instrument can measures¢2-8inches diameter crystal round plate, for example, angle of silicon (111) sapphire C surface; at the same time it can measures reference or OF surface of crystal bar, such as for angle of silicon (110) sapphire A surface and other crystal.
  2. The other surface of GC angular instrument can measures crystal bar end surface, operator can measure ¢5-8nches diameter,500mm length crystal bar end surface by changing width of roll bar. For example: angle of silicon (111,100) sapphire C surface and other crystal. It can also measures crystal round plate.

Main parameters:


Items

Parameters

Crystal round plate diameter

2---8inch、max 11inch

Crystal bar diameter

5---8inch、max 11inch

Crystal bar length

500mm; max 550mm

Sample area

43width×112height mm

Orientation precision

±30″

Displayer

Outer vertical type

Display way

θ:degree;minute;second;minimum reading 10″

Technical targets

Satisfied with YX-2 targets

Both side angular instrument clients can select different model products according to crystal dimension and shape, please refer to G series angular instrument such as GA、GB、 GC、GD, GE、GF、GH model.
